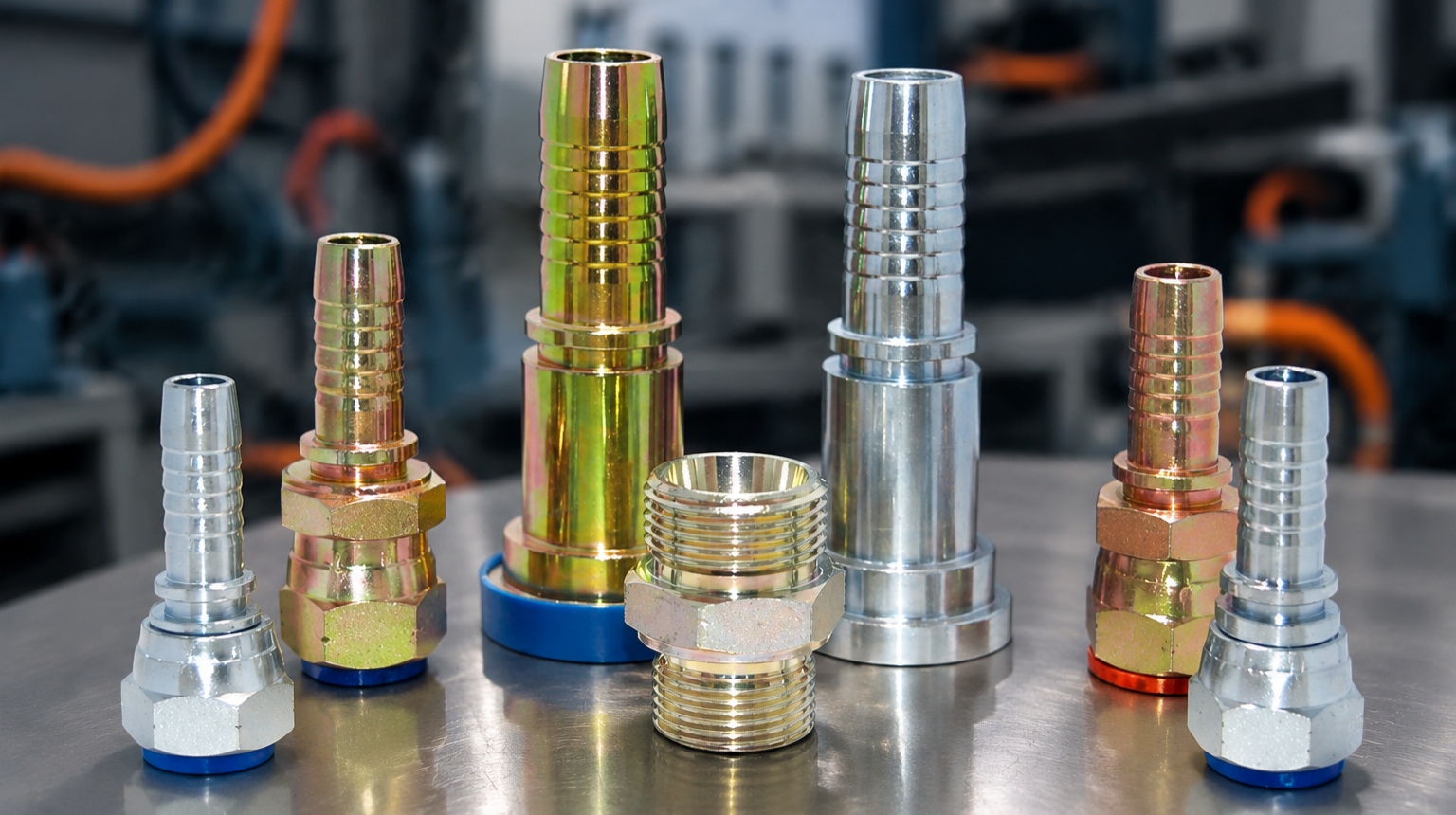

In hydraulic system design and maintenance, the choice of thread standard for fittings is critical. Choosing the wrong thread not only causes leaks but may also damage ports and even lead to safety incidents. The world’s mainstream hydraulic fitting thread standards fall into three families: Metric, British, and American. They differ in thread profile, flank angle, sealing method, and identification. This article explains how to quickly distinguish these three standards.
1. Metric Threads
Metric threads follow ISO 261/262. They feature a 60° flank angle and pitch measured in millimeters (mm). In high-pressure hydraulic fittings, the most common metric interface is M thread + 24° cone seal, conforming to DIN 3865 or ISO 8434-1.
Identification: Designation starts with “M” followed by nominal diameter × pitch, e.g., M18×1.5. Measure pitch – typical values are 1.0, 1.5, 2.0 mm.
Sealing: Thread itself does not seal. Sealing is achieved by a 24° metal-to-metal cone between the stem and fitting body, or by an O-ring face seal.
Applications: European equipment, construction machinery, injection molding machines, metallurgical hydraulics.
2. British Standard Threads
British threads originate from British standards. Two common types in hydraulics: BSPP (British Standard Pipe Parallel) and BSPT (British Standard Pipe Taper). Both have a 55° flank angle.
BSPP: Designation G. Parallel thread. Sealing relies on a bonded washer or O-ring against the thread face. Example: G1/2. Pitch is given in threads per inch (TPI) – e.g., 1/2″ BSPP has 14 TPI.
BSPT: Designation R (external taper) or Rc (internal taper). Taper 1:16. Seals by thread interference; PTFE tape or sealant required. Example: R1/2.
Identification: 55° flank angle (use 55° thread gauge). BSPP threads show no taper on the external surface; BSPT threads clearly taper.
Applications: Equipment in Commonwealth countries, some marine hydraulic systems, pneumatic lines.
3. American Standard Threads
The American thread system is extensive, but the most common in high-pressure hydraulic fittings are UN/UNF (Unified Thread) and NPT/NPTF (National Pipe Thread). Both have a 60° flank angle.
UN/UNF: Unified threads – UNF (fine) and UNC (coarse). Commonly found on JIC 37° flare fittings, e.g., 7/16-20 UNF (7/16″ OD, 20 TPI). Sealing is metal-to-metal on the 37° flare seat, not on threads.
NPT/NPTF: National Pipe Taper, taper 1:16, 60° flank angle. Seals by thread interference. Example: 1/2-14 NPT. NPTF is dry-seal with higher precision.
Identification: UN threads have inch-fraction OD and even-number TPI (e.g., 20, 24, 28). NPT threads are visibly tapered. Use a 60° thread gauge.
Applications: North American construction machinery, aerospace hydraulics, high-pressure oil lines.
4. Quick Comparison
Flank angle: Metric 60°, British 55°, American 60°.
Pitch unit: Metric uses mm; British and American use TPI (threads per inch).
Common codes: M / G,R / UN,NPT.
Taper: Metric parallel; BSPT and NPT have 1:16 taper.
Sealing mechanism: Metric cone/O-ring; British bonded washer or thread interference; American flare seat or thread interference.
5. Selection Precautions
Do not mix: Metric and British have different flank angles (60° vs 55°) – mixing causes leakage and thread damage. NPT and BSPT both have 1:16 taper but different flank angles (60° vs 55°) – never interchange.
Measuring tools: Keep 55° and 60° thread gauges, a vernier caliper, and thread ring gauges. Measuring OD and pitch/TPI is the most reliable method.
Read markings: Original fittings often have stampings or color codes. Familiarize yourself with common size charts.
Safety first: Leaks in high-pressure hydraulics can cause injection injuries. When uncertain, verify with a thread gauge before connecting.
Conclusion
To distinguish Metric, British, and American high-pressure hydraulic fitting threads, focus on flank angle (55° vs 60°), pitch unit (mm vs TPI), and taper presence. Metric often pairs with a 24° cone; British BSPP uses bonded washers and BSPT taper self-seals; American JIC uses a 37° flare and NPT taper self-seals. Mastering these points will help you avoid selection errors and ensure safe, reliable hydraulic systems.
